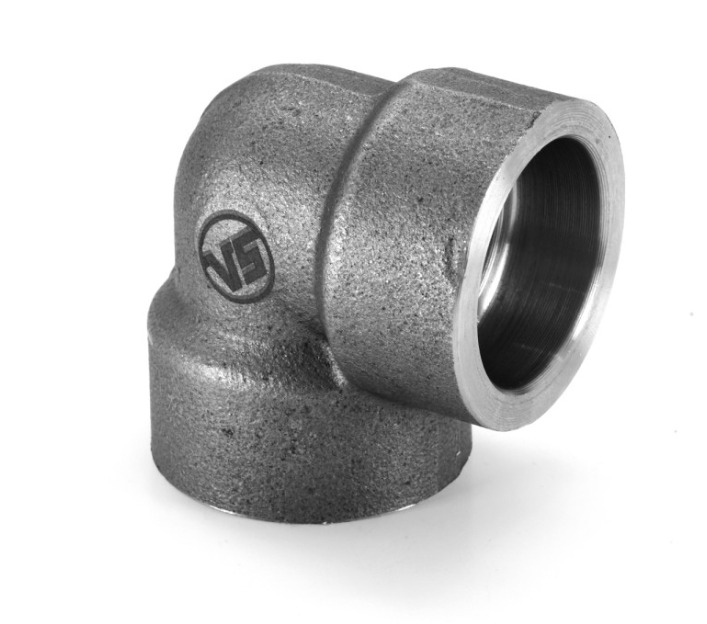

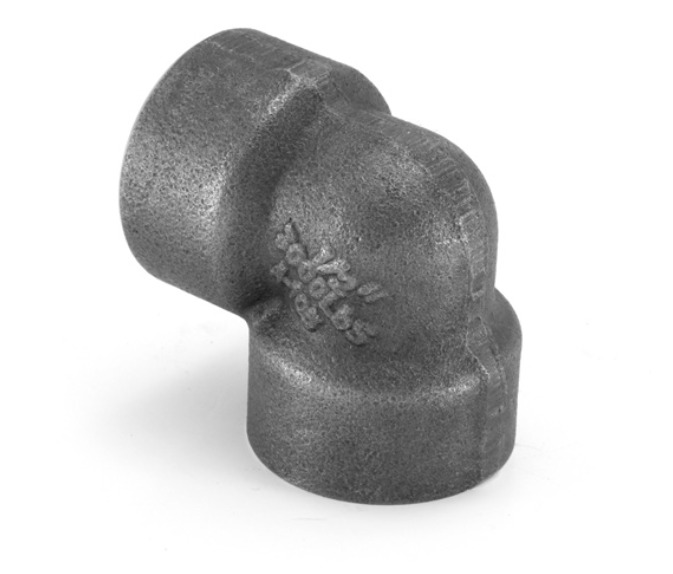

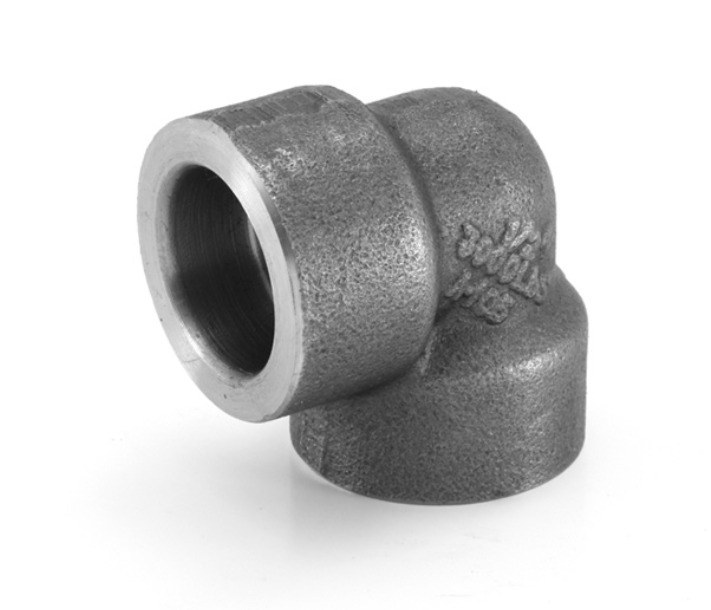

Reducing Socket Weld Elbow 90° Forged 3000 LBS BLACK
Socket Weld Elbow 90° Forged 3000 LBS BLACK
Reducing Socket Weld Elbow 90° Forged 3000 LBS BLACK

Reducing Socket Weld Elbow 90° Forged 3000 LBS BLACK

Reducing Socket Weld Elbow 90°

Forged 3000 LBS BLACK

View List

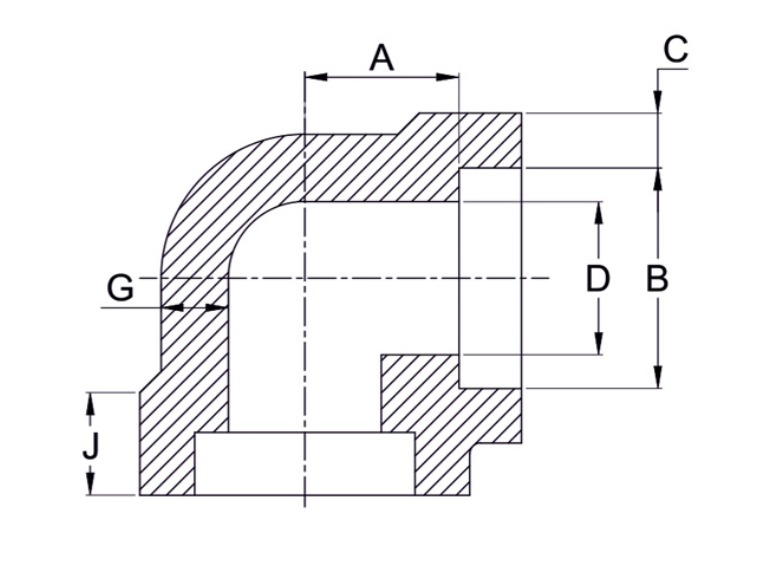

Class Designation: 3000 Lbs Dimensions ‘VS’ Reducing Socket Weld Elbow
Nominal Size Socket Bore Dia B1 Socket Bore Dia B2 Bore Dia of Fitting Dia D1 Bore Dia of Fitting Dia D2 Socket Wall Thickness C Depth of socket (J) Center to Bottom of Socket A Body Wall Thickness G
Inch MM Min. Max. Min. Max. Min. Max. Min. Max. Min. J1 J2 Min. Max. Min.
1/4″x1/8″ 8×6 14.20 14.60 10.80 11.20 8.50 10.00 6.10 7.60 3.78 10.50 10.50 10.00 12.00 3.02
3/8″x1/4″ 10×8 17.60 18.00 14.20 14.60 11.80 13.30 8.50 10.00 4.01 10.50 10.50 12.00 15.00 3.20
1/2″x3/8″ 15×10 21.80 22.00 17.60 18.00 15.00 16.60 11.80 13.30 4.67 10.50 10.50 14.00 17.00 3.73
3/4″x1/2″ 20×15 27.20 27.60 21.80 22.20 20.20 21.70 15.00 16.60 4.90 13.50 10.50 18.00 21.00 3.91
1″x1/2″ 25×15 33.90 34.30 21.80 22.20 25.90 27.40 15.00 16.60 5.69 13.50 10.50 20.00 24.00 4.55
1″x3/4″ 25×20 33.90 34.30 27.20 27.60 25.90 27.40 20.20 21.70 5.69 13.50 13.50 20.00 24.00 4.55
1.1/4″x3/4″ 32×20 42.70 43.10 27.20 27.60 34.30 35.80 20.20 21.70 6.07 13.50 13.50 25.00 29.00 4.85
1.1/4″x1″ 32×25 42.70 43.10 33.90 34.30 34.30 35.80 25.90 27.40 6.07 13.50 13.50 25.00 29.00 4.85
1.1/2″x1″ 40×25 48.80 49.20 33.90 34.30 40.10 41.60 25.90 27.40 6.35 13.50 13.50 30.00 34.00 5.08
1.1/2″x1.1/4″ 40×32 48.80 49.20 42.70 43.10 40.10 41.60 34.30 35.80 6.35 13.50 13.50 30.00 34.00 5.08
2″x1.1/4″ 50×32 61.20 61.70 42.70 43.10 51.70 53.30 34.30 35.80 6.93 16.00 13.50 35.00 40.00 5.54
2″x1.1/2″ 50×40 61.20 61.70 48.80 49.20 51.70 53.30 40.10 41.60 6.93 16.00 13.50 36.00 40.00 5.54
2.1/2″x1.1/2″ 65×40 73.20 74.40 48.80 49.20 61.20 64.20 40.10 41.60 8.76 16.00 13.50 38.50 43.50 7.01
2.1/2″x2″ 65×50 73.20 74.40 61.20 61.70 61.20 64.20 51.70 53.30 8.76 16.00 16.00 38.50 43.50 7.01
3″x2.1/2″ 80×65 89.80 90.30 73.90 74.40 76.40 79.40 61.20 64.20 9.52 16.00 16.00 54.50 59.50 7.62
3″x2″ 80×50 89.80 90.30 61.20 61.70 76.40 79.40 51.70 53.30 9.52 16.00 16.00 54.50 59.50 7.62
All Dimensions in MM
