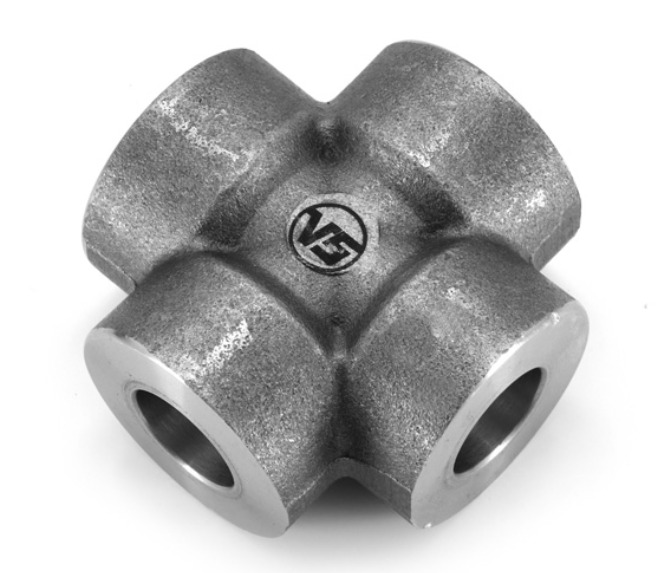

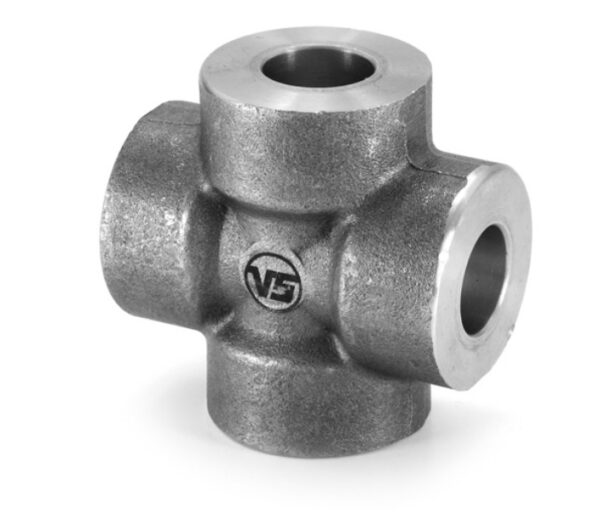

Name: Socket Weld Cross Forged 3000 LBS
SKU: 2775
Availability: InStock

Socket Weld Cross Forged 3000 LBS

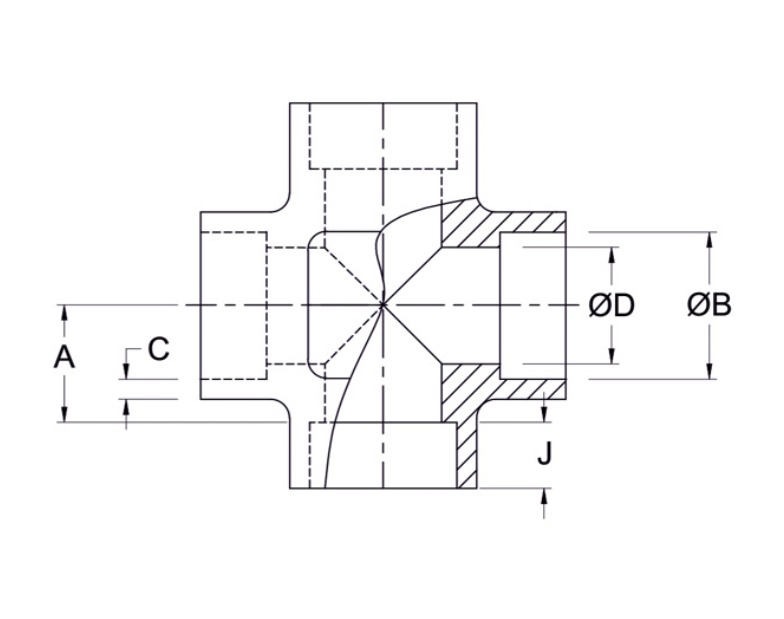

Class Designation: 3000 Lbs				Dimensions As Per ASME B16.11-2011/ IS: 4712:2011 (Class 20)
Nominal Size		Socket Bore Dia B		Bore Dia of Fitting Dia D		Socket Wall Thickness C	MIN. Depth of Socket J	Center to Bottom of Socket A		Body Wall Thickness G
Inch	MM	Min.	Max.	Min.	Max.	Min.	Min.	Min.	Max.	Min.
1/8″	6.00	10.80	11.20	6.10	7.60	3.18	10.50	11.00	12.00	2.41
1/4″	8.00	14.20	14.60	8.50	10.00	3.30	10.50	11.00	12.00	3.02
3/8″	10.00	17.60	18.00	11.80	13.30	3.50	10.50	13.50	15.00	3.20
1/2″	15.00	21.80	22.20	15.00	16.60	4.09	10.50	15.50	17.00	3.73
3/4″	20.00	27.20	27.60	20.20	21.70	4.27	13.50	19.00	20.50	3.91
1″	25.00	33.90	34.30	25.90	27.40	4.98	13.50	22.50	24.00	4.55
1.1/4″	32.00	42.70	43.10	34.30	35.80	5.28	13.50	27.00	29.00	4.85
1.1/2″	40.00	48.80	49.20	40.10	41.60	5.54	13.50	32.00	34.00	5.08
2″	50.00	61.20	61.70	51.70	53.30	6.04	17.00	38.00	40.00	5.54
2.1/2″	65.00	73.90	74.40	61.20	64.20	7.67	18.00	42.00	43.50	7.01
3″	80.00	89.80	90.30	76.40	79.40	8.30	18.00	57.00	59.50	7.62
4″	100.00	115.20	115.70	100.70	103.80	9.35	19.00	66.50	69.00	8.56
All Dimensions in MM

Unmatched Durability and Performance

The Socket Weld Cross Forged 3000 LBS is expertly designed for industrial applications that demand exceptional reliability and strength. With a precise forged construction, this component ensures unmatched durability, making it an ideal choice for high-pressure environments. Engineered to deliver seamless fluid flow, this versatile cross fitting is highly valued for its robust build and long-lasting performance.

Precision Engineering for Critical Applications

Designed with precision and attention to detail, the Socket Weld Cross Forged 3000 LBS meets rigorous industry standards, providing peace of mind in critical operations. Its forged fabrication process enhances structural integrity, minimizing the risk of leaks and failures under demanding conditions. Whether you’re working with pipelines, energy systems, or chemical processing applications, this fitting guarantees optimal performance and reliability.

Versatile Compatibility for Seamless Integration

The Socket Weld Cross Forged 3000 LBS is engineered to integrate seamlessly into your existing systems. Its compatibility with socket weld fittings makes installation straightforward, saving time and effort while ensuring a secure connection. Available in multiple sizes and specifications, this product is versatile enough to accommodate a wide range of industrial and mechanical setups, delivering consistent results regardless of application.
