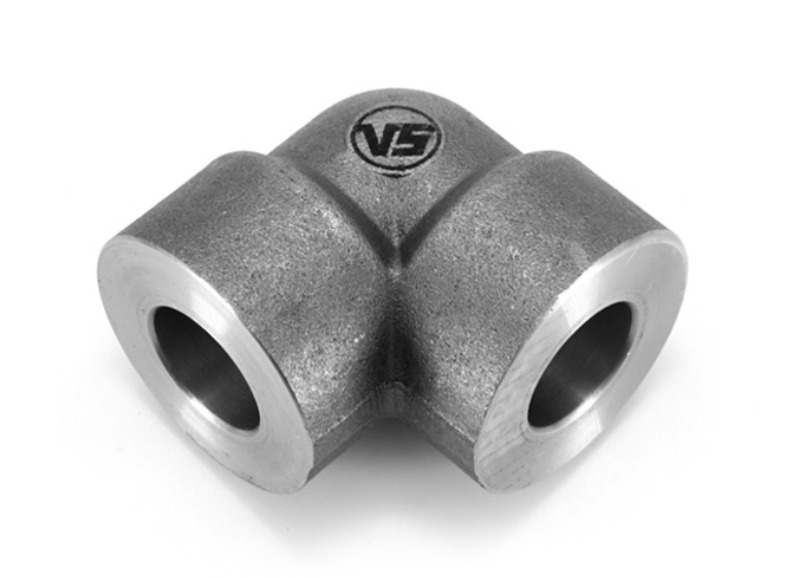

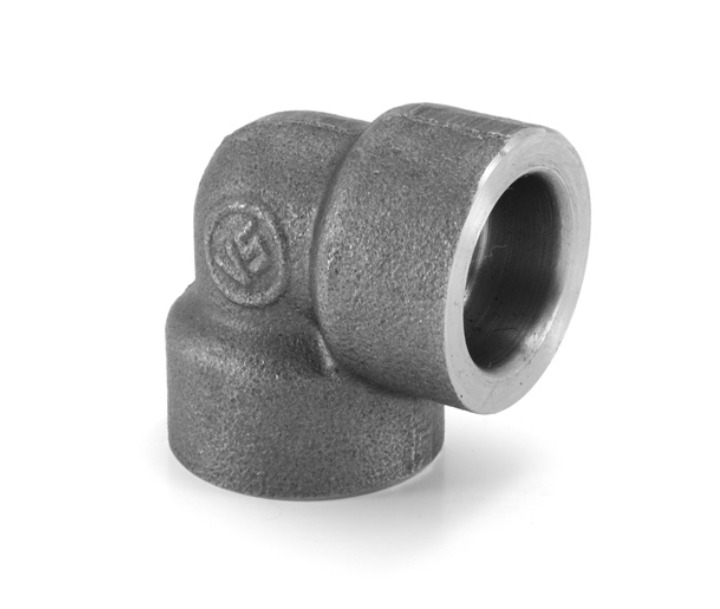

| Class Designation:3000 LBS | Dimensions As Per ASME B16.11-2011/ IS:4712:2011(Class20) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Socket Bore Dia | Bore Dia of Fitting Dia D | Socket Wall Thickness C | Min. Depth of socket J | Center to bottom of socket A | Body Wall Thickness G | ||||
| Inch | MM | Min. | Max | Min. | Max. | Min. | Min. | Min. | Max. | Min. |
| 1/8″ | 6.00 | 10.80 | 11.20 | 6.10 | 7.60 | 3.18 | 10.50 | 11.00 | 12.00 | 2.41 |
| 1/4″ | 8.00 | 14.20 | 14.60 | 8.50 | 10.00 | 3.30 | 10.50 | 13.50 | 15.00 | 3.20 |
| 3/8″ | 10.00 | 17.60 | 18.00 | 11.80 | 13.30 | 3.50 | 10.50 | 13.50 | 15.00 | 3.20 |
| 1/2″ | 15.00 | 21.80 | 22.20 | 15.00 | 16.60 | 4.09 | 10.50 | 15.50 | 17.00 | 3.73 |
| 3/4″ | 20.00 | 27.20 | 27.60 | 20.20 | 21.70 | 4.27 | 13.50 | 19.00 | 20.50 | 3.91 |
| 1″ | 25.00 | 33.90 | 34.30 | 25.90 | 27.40 | 4.98 | 13.50 | 22.50 | 24.00 | 4.55 |
| 1.1/4″ | 32.00 | 42.70 | 43.10 | 34.30 | 35.80 | 5.28 | 13.50 | 27.00 | 29.00 | 4.85 |
| 1.1/2″ | 40.00 | 48.80 | 49.20 | 40.10 | 41.60 | 5.54 | 13.50 | 32.00 | 34.00 | 5.08 |
| 2″ | 50.00 | 61.20 | 61.70 | 51.70 | 53.30 | 6.04 | 17.00 | 38.00 | 40.00 | 5.54 |
| 2.1/2″ | 65.00″ | 73.90 | 74.40 | 61.20 | 64.20 | 7.67 | 18.00 | 42.00 | 43.50 | 7.01 |
| 3″ | 80.00 | 89.80 | 90.30 | 76.40 | 79.40 | 8.30 | 18.00 | 57.00 | 59.50 | 7.62 |
| 4″ | 100.0 | 115.20 | 115.20 | 100.70 | 103.80 | 9.35 | 19.00 | 66.50 | 68.00 | 8.56 |
| All Dimensions in MM | ||||||||||
