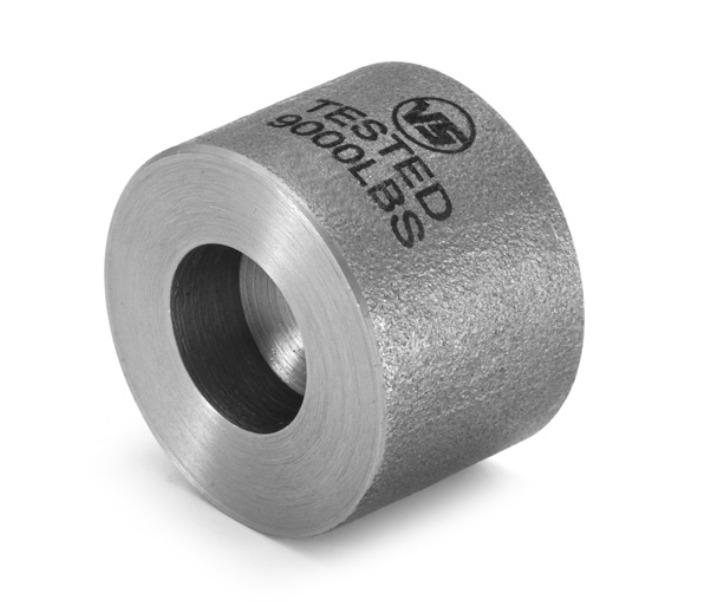

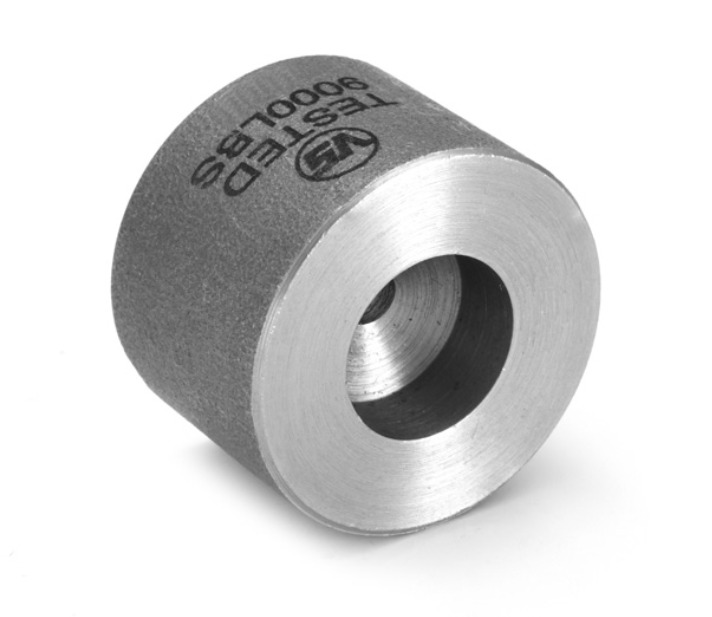

Socket Weld Socket/ Coupling (9000 Lbs)

Socket Weld Socket/ Coupling (9000 Lbs)

Description

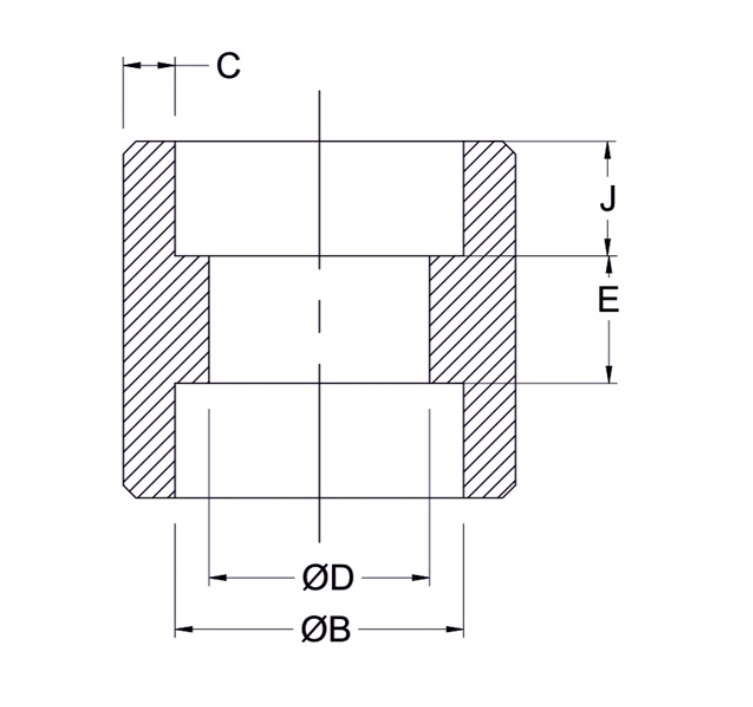

Class Designation: 9000 Lbs				Dimensions As Per ASME B 16.11-2011
Nominal Size		Socket Bore Dia B		Water Way Bore D		Socket Wall Thickness C	Depth of socket J	Nut G	Laying Length E
Inch	MM	Min.	Max.	Min.	Max.	Min.	Min.	Min.	Min.
1/2″	15.00	21.80	22.20	5.60	7.20	8.18	10.50	6.50	12.50
3/4″	20.00	27.20	27.60	10.30	11.80	8.56	13.50	6.50	12.50
1″	25.00	33.90	34.30	14.40	16.00	9.96	13.50	8.50	16.50
1.1/4″	32.00	42.70	43.10	22.00	23.50	10.62	13.50	8.50	16.50
1.1/2″	40.00	48.80	49.20	27.20	28.70	11.12	13.50	8.50	16.50
2″	50.00	61.20	61.70	37.40	38.90	12.12	17.00	15.00	23.00
All dimensions in MM
