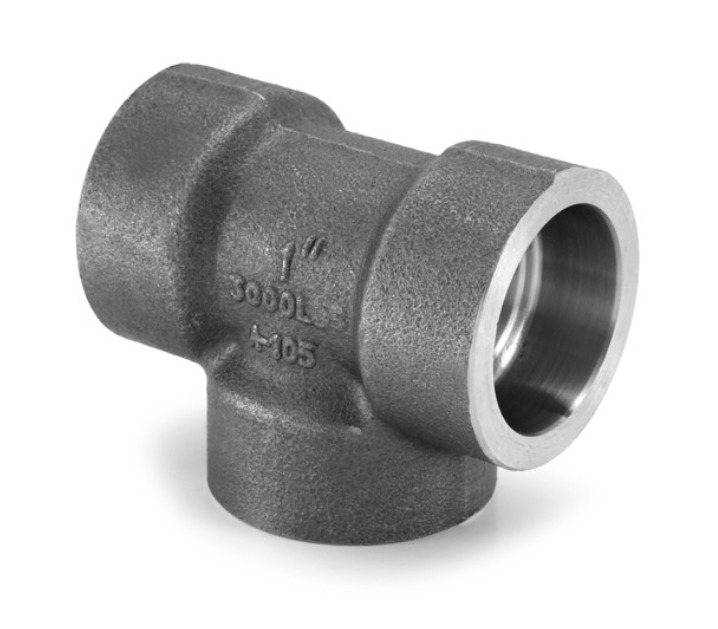

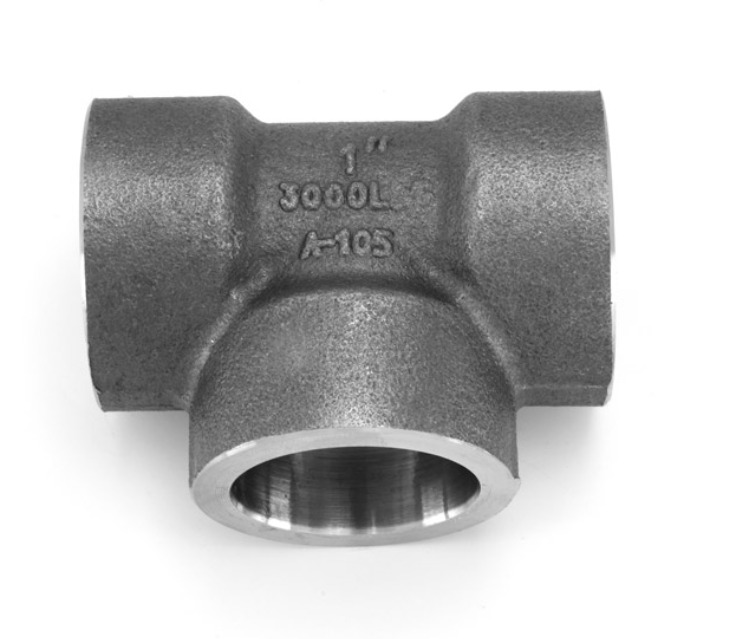

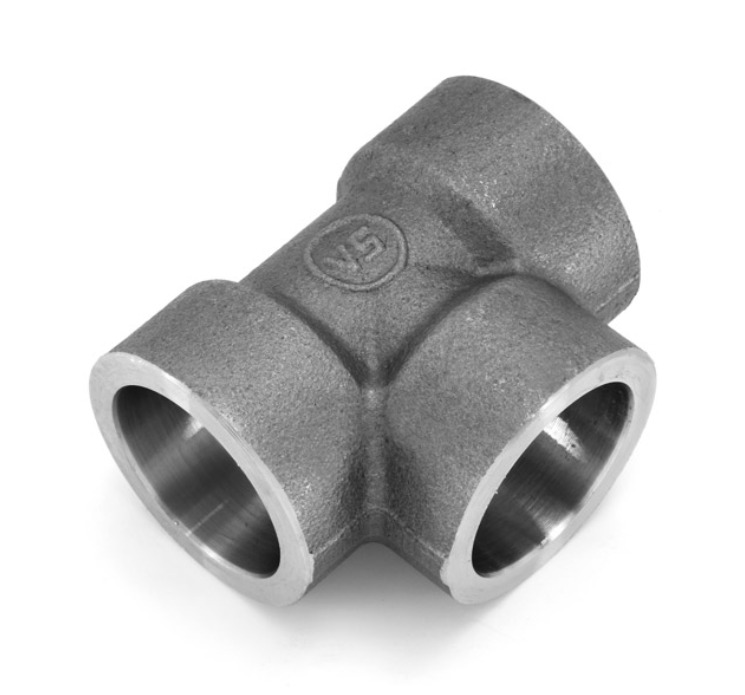

Socket Weld Tee
Forged 3000 LBS BLACK
steam run applications like turbines and boilers because of their strength to curtail high pressures.
Threaded Pipe Fittings
Socket Weld Tee Forged 3000 LBS

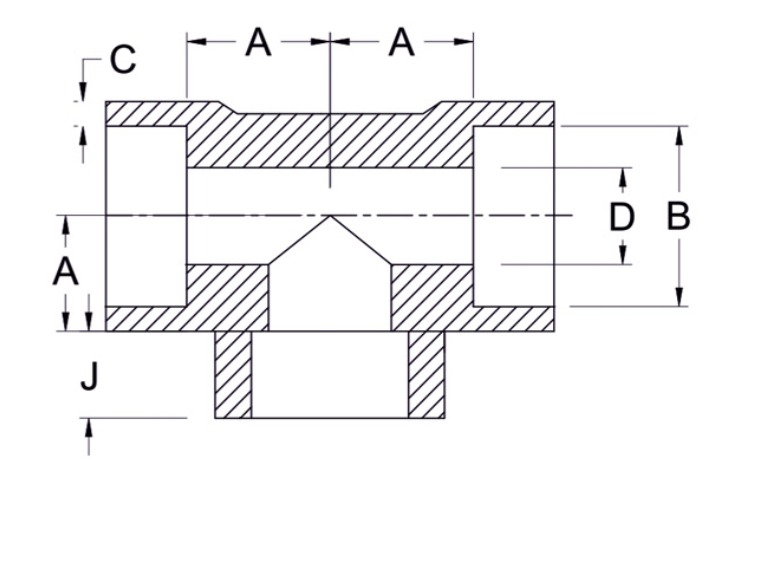

| Class Designation: 3000 Lbs | Dimensions As Per ASME B16.11-2011/ IS: 4712:2011 (Class 20) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Socket Bore Dia B | Bore Dia of Fitting Dia D | Socket Wall Thickness C | MIN. Depth of Socket J | Center to Bottom of Socket A | Body Wall Thickness G | ||||
| Inch | MM | Min. | Max. | Min. | Max. | Min. | Min. | Min. | Max. | Min. |
| 1/8″ | 6.00 | 10.80 | 11.20 | 6.10 | 7.60 | 3.18 | 10.50 | 11.00 | 12.00 | 2.41 |
| 1/4″ | 8.00 | 14.20 | 14.60 | 8.50 | 10.00 | 3.30 | 10.50 | 11.00 | 12.00 | 3.02 |
| 3/8″ | 10.00 | 17.60 | 18.00 | 11.80 | 13.30 | 3.50 | 10.50 | 13.50 | 15.00 | 3.20 |
| 1/2″ | 15.00 | 21.80 | 22.20 | 15.00 | 16.60 | 4.09 | 10.50 | 15.50 | 17.00 | 3.73 |
| 3/4″ | 20.00 | 27.20 | 27.60 | 20.20 | 21.70 | 4.27 | 13.50 | 19.00 | 20.50 | 3.91 |
| 1″ | 25.00 | 33.90 | 34.30 | 25.90 | 27.40 | 4.98 | 13.50 | 22.50 | 24.00 | 4.55 |
| 1.1/4″ | 32.00 | 42.70 | 43.10 | 34.30 | 35.80 | 5.28 | 13.50 | 27.00 | 29.00 | 4.85 |
| 1.1/2″ | 40.00 | 48.80 | 49.20 | 40.10 | 41.60 | 5.54 | 13.50 | 32.00 | 34.00 | 5.08 |
| 2″ | 50.00 | 61.20 | 61.70 | 51.70 | 53.30 | 6.04 | 17.00 | 38.00 | 40.00 | 5.54 |
| 2.1/2″ | 65.00 | 73.90 | 74.40 | 61.20 | 64.20 | 7.67 | 18.00 | 42.00 | 43.50 | 7.01 |
| 3″ | 80.00 | 89.80 | 90.30 | 76.40 | 79.40 | 8.30 | 18.00 | 57.00 | 59.50 | 7.62 |
| 4″ | 100.00 | 115.20 | 115.70 | 100.70 | 103.80 | 9.35 | 19.00 | 66.50 | 68.00 | 8.56 |
| All Dimensions in MM | ||||||||||
